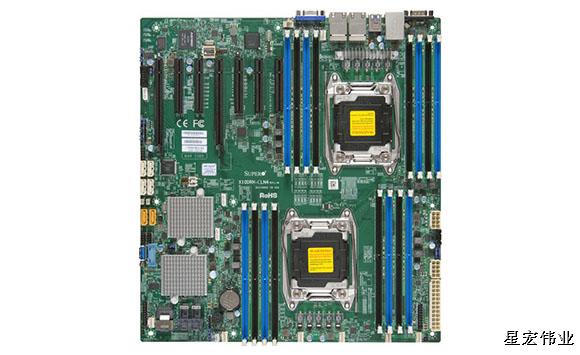

| MBD-X10DRH-CLN4 |
|
| |
|
| Form Factor |
|
| Dimensions |
- 12" x 13" (30.48cm x 33.02cm)
|
| |
|
| CPU |
- Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
- Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W, 1 QPI up to 9.6GT/s
|
| Cores / Cache |
- Up to 22 cores † / Up to 55MB† cache
|
| Note |
- † BIOS version 2.0 or above is required
|
| Note |
- ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
|
| |
|
| Memory Capacity |
- 512GB Registered ECC RDIMM, DDR4-2133MHz, in 16 DIMM slots
|
| Memory Type |
- 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
|
| DIMM Sizes |
- RDIMM: 4GB, 8GB, 16GB, 32GB
- LRDIMM: 32GB, 64GB
- 3DS LRDIMM: 128GB
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
|
| |
|
| Chipset |
|
| SAS |
- Broadcom 3008 SAS3 (12Gbps) controller;
SW RAID 0, 1, 10
JBOD support (IT Mode) JBOD support (IT Mode)
|
| AHCI SATA |
- SATA3 (6Gbps); RAID 0, 1, 5, 10
|
| SCU SATA |
- SATA3 (6Gbps); RAID 0, 1, 5, 10
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
|
| Network Controllers |
- Quad LAN with Intel® i350 Gigabit Ethernet Controller
Single LAN with Virtual Machine Device Queues reduce I/O overhead
|
| Graphics |
|
| |
|
| SATA |
|
| LAN |
- 4 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
- 4 USB 2.0 ports (4 headers, Type A))
- 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
|
| Video Output |
|
| Serial Port / Header |
- 2 COM Ports (1 rear, 1 header)
1 fast UART 16550 serial
|
| TPM |
|
| Others |
|
|
|
|
| PCI-E |
- 2 PCI-E 3.0 x16,
- 4 PCI-E 3.0 x8,
- 1 PCI-E 3.0 x4 (in x8 slot)
|
| |
|
| BIOS Type |
- 128Mb SPI Flash EEPROM with AMI BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- PCI 2.3
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- USB Keyboard support
- SMBIOS 2.7.1
- UEFI 2.3.1
|
| |
|
| Software |
- Intel® Node Manager, IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, SuperDoctor® III, Watchdog
|
| Power Configurations |
- ACPI Power Management
- Power-on mode for AC power recovery
|
| |
|
| Voltage |
- +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT
|
| FAN |
- 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
|
| Temperature |
- Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI
|
| LED |
- CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
|
| Other Features |
- Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC
|
| |
|
| Operating Temperature Range |
- 10°C - 35°C (50°F - 95°F)
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
|
